产品详情

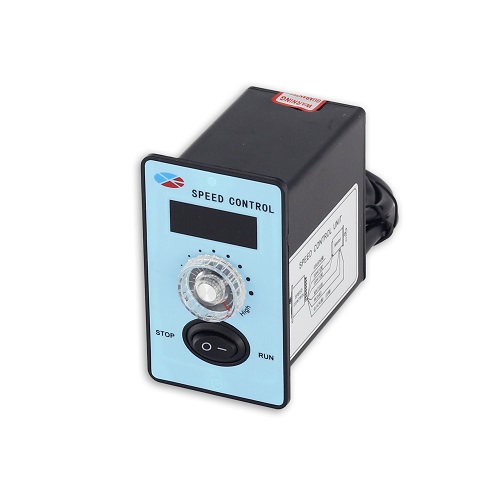

数显调速器
分享到:
数显调速器
类型: 其他产品
品牌: 奥奇力
型号: 数显调速器
产品详情



速度控制器(调速器)


产品展示

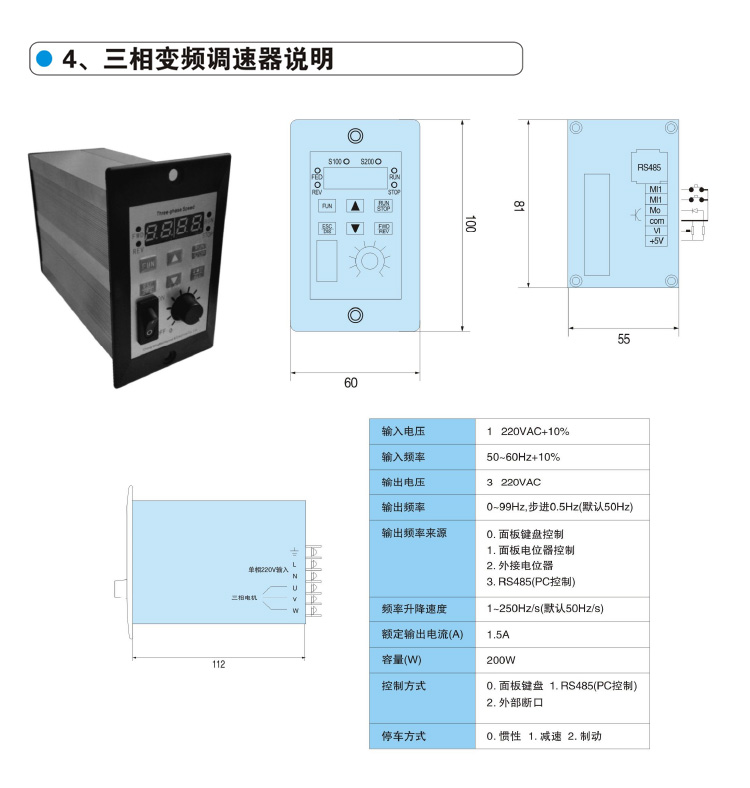

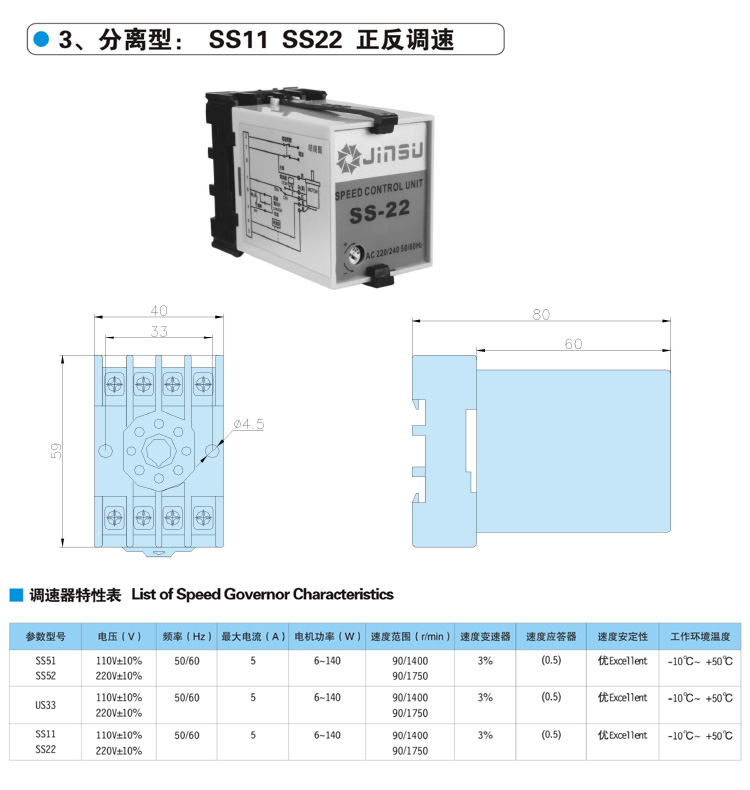

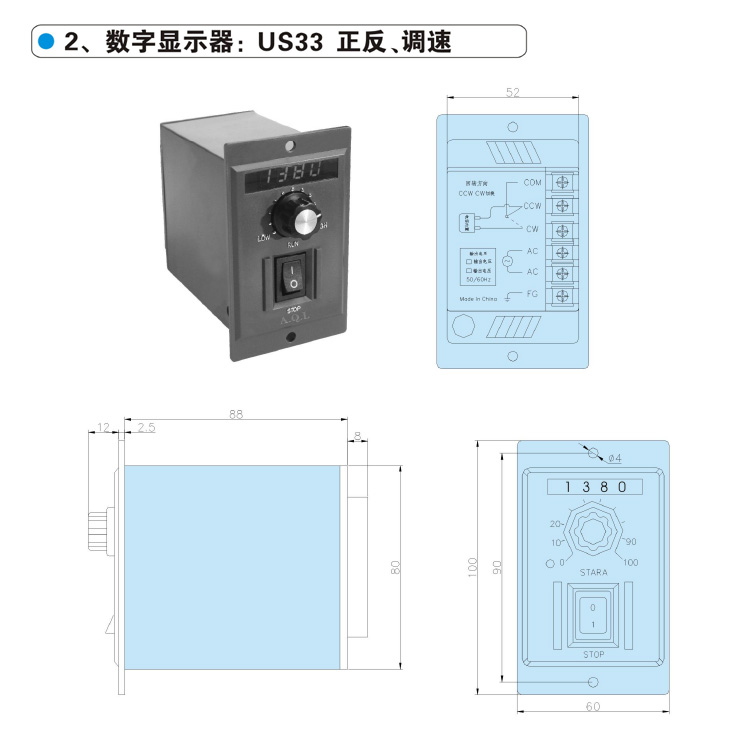

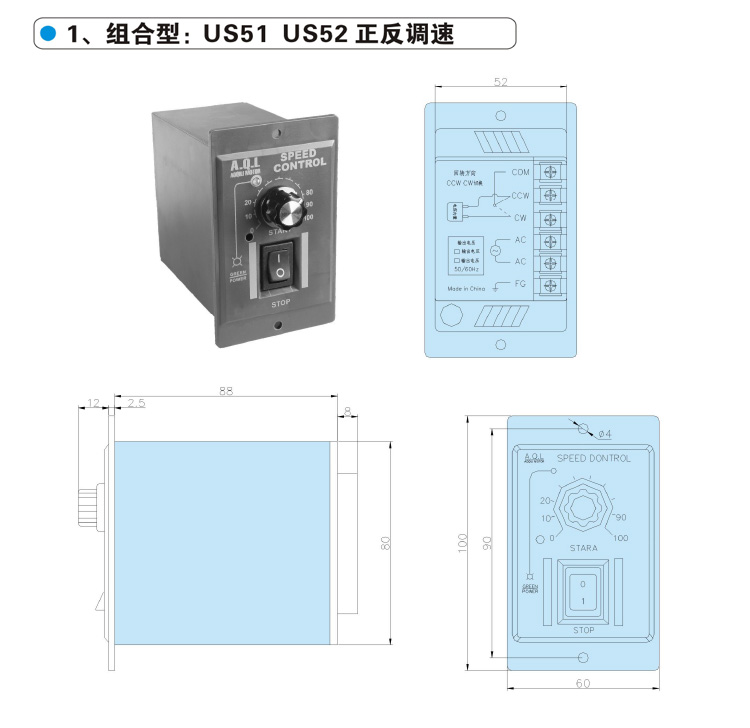

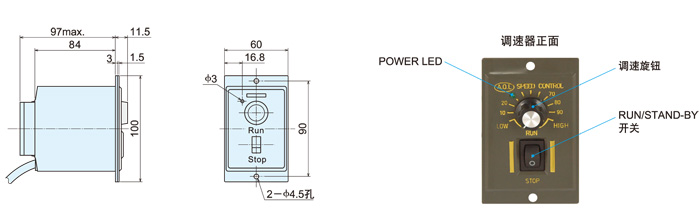

尺寸与特征 Dimension and Characteristic

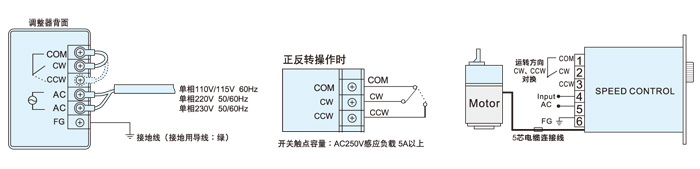

接线图 Connection Diagrams


使用方法 Method of Use

操作步骤 Operation :

速度控制器和电机接好后,接上AC电源,当控制器按钮调至RUN,从电机轴方向看,电机顺时针方向旋转。但是电机和减速机的旋转方向是否一致,取决于减速比,请看每种配置与详细参数。

The speed control unit and the lead wire connector of the motor are connected and then teh plug cord is conected to AC power. When the RUN/STOP switch of the control unit is switched to RUN, then it is turn clocdwise, (The product is made so that it will rotate in the clockwise direction. Howeve, at times, due to gear ratio the direction of rotation for the gearhead shaft is opposite (counter-clockwise)).


不同的速度 Variable Speed :

基本型的速度控制器速度旋钮顺时针旋转,电机转速增加,反之电机转速减少,调整范围90-1350rpm.

If the SPEED VOLUME switch of the control unit is turned turned number of rotation of the motor increases and if it is turned counter-clockwise, slows down.It is possible to control and designate the speed of the motor between90~1350rpm.


关闭 Stop :

将开关按钮指向STOP,电机运转停止,此按钮不是电源的开头按钮,需要长时间停止运转时,请另外设置电源开关。

If the RUN/STOP switch of the control unit is switched to STOP,the motor stops. This switch is not an on-off switch for power. When the motor nedds to be stopped for a long time, a separate power source should be installed and turned off.
